Product characteristicsElectrical designPNPOutput functionnormally open / normally closed; (parameterisable)Sensing range [mm]40…300; (Target: 200 x 200 mm)Communication interfaceIO-LinkHousingthreaded typeDimensions [mm]M18 x 1 / L = 60.5Electrical dataOperating voltage [V]10…30 DC; (“supply class 2” to cULus)Current consumption [mA]< 35Protection classIIIReverse polarity protectionyesPower-on delay time [s]< 0.3Converter frequency [kHz]300Inputs / outputsNumber of inputs and outputsNumber of digital outputs: 1InputsSynchronisation inputnoMultiplex inputnoOutputsTotal number of outputs1Electrical designPNPNumber of digital outputs1Output functionnormally open / normally closed; (parameterisable)Max. voltage drop switching output DC [V]2.2Permanent current rating of switching output DC [mA]100Switching frequency DC [Hz]8Short-circuit protectionyesOverload protectionyesDetection zoneSensing range [mm]40…300; (Target: 200 x 200 mm)Blind zone [mm]40Angle of aperture cylindrical [°]15; (±2)Max. deviation from the 90° angle sensor/object [°]± 4Accuracy / deviationsTemperature compensationyesHysteresis [%]< 1Switch point drift [%]-2…2Repeatability<0,7 %Resolution [mm]1Notes on the accuracy / deviationThe indicated values are reached after a warm-up time of min. 20 minutesSoftware / programmingParameter setting optionshysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on modeInterfacesCommunication interfaceIO-LinkTransmission typeCOM2 (38,4 kBaud)IO-Link revision1.1SDCI standardIEC 61131-9ProfilesSmart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable; Device Diagnosis; Teach ChannelSIO modeyesRequired master port typeAMin. process cycle time [ms]3.2IO-Link process data (cyclical)
function
bit length
process value
16
device status
4
binary switching information
2
IO-Link functions (acyclical)application specific tag; operating hours counterSupported DeviceIDs
Type of operation
DeviceID
Default
886
Note
For further information please see the IODD PDF file under “Downloads”
Operating conditionsAmbient temperature [°C]-20…70Storage temperature [°C]-30…80ProtectionIP 67Tests / approvalsEMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
3 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
3 V
EN 55011
Class A
Vibration resistance
EN 60068-2-6 Fc
(10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance
EN 60068-2-27 Ea
30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
MTTF [years]202UL approval
Ta
-20…70 °C
power supply
Class 2
File number UL
E174191
Mechanical dataWeight [g]79.5Housingthreaded typeDimensions [mm]M18 x 1 / L = 60.5Thread designationM18 x 1Materialsstainless steel (1.4404 / 316L); PA; epoxy glass ceramicsTightening torque [Nm]50Displays / operating elementsDisplay
switching status
1 x LED, yellow
echo
1 x LED, green
AccessoriesItems supplied
lock nuts: 2, stainless steel
RemarksRemarks
operating voltage “supply class 2” according to cULus
Pack quantity1 pcs.Electrical connectionConnectionConnector: 1 x M12; coding: ADiagrams and graphs

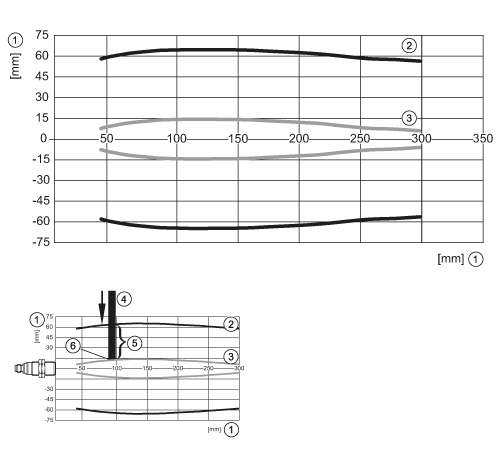

1:
distance
2:
Detection zone
3:
switch-on/switch-off graph
4:
Target 100 x 100 mm
5:
50% of the target in the detection zone
6:
switch point
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — UGT524-00 — 15.10.2020 —
