Product characteristicsType of lightred lightHousingrectangularApplicationSpecial featureBackground suppressionFunction principleDiffuse reflection sensorElectrical dataOperating voltage [V]10…30 DCCurrent consumption [mA]22; ((24 V))Protection classIIIReverse polarity protectionyesType of lightred lightWave length [nm]633OutputsElectrical designPNPOutput functionlight-on/dark-on mode; (selectable)Max. voltage drop switching output DC [V]2.5Permanent current rating of switching output DC [mA]100Switching frequency DC [Hz]1000Short-circuit protectionyesType of short-circuit protectionpulsedDetection zoneRange [mm]2…200; (white paper 200 x 200 mm)Range on white object (90 % remission) [mm]2…200Range on grey object (18 % remission) [mm]4…200Range on black object (6 % remission) [mm]8…200Range adjustableyesMax. light spot diameter [mm]8Light spot dimensions refer toat maximum rangeBackground suppression availableyesOperating conditionsAmbient temperature [°C]-25…80ProtectionIP 65; IP 67; IP 68; IP 69KTests / approvalsEMC
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O6H301-02 — 21.02.2023 —
Mô tả
Product characteristicsType of lightred lightHousingrectangularApplicationSpecial featureBackground suppressionFunction principleDiffuse reflection sensorElectrical dataOperating voltage [V]10…30 DCCurrent consumption [mA]22; ((24 V))Protection classIIIReverse polarity protectionyesType of lightred lightWave length [nm]633OutputsElectrical designPNPOutput functionlight-on/dark-on mode; (selectable)Max. voltage drop switching output DC [V]2.5Permanent current rating of switching output DC [mA]100Switching frequency DC [Hz]1000Short-circuit protectionyesType of short-circuit protectionpulsedDetection zoneRange [mm]2…200; (white paper 200 x 200 mm)Range on white object (90 % remission) [mm]2…200Range on grey object (18 % remission) [mm]4…200Range on black object (6 % remission) [mm]8…200Range adjustableyesMax. light spot diameter [mm]8Light spot dimensions refer toat maximum rangeBackground suppression availableyesOperating conditionsAmbient temperature [°C]-25…80ProtectionIP 65; IP 67; IP 68; IP 69KTests / approvalsEMC
MTTF [years]708UL approval
Mechanical dataWeight [g]51.4HousingrectangularMaterialshousing: stainless steel (1.4404 / 316L); plastics: PPSU; Sealing: EPDMLens material
Lens alignmentside lensTightening torque [Nm]1; (screws)Displays / operating elementsDisplay
RemarksRemarks
Pack quantity1 pcs.Electrical connectionConnectionCable: 0.3 m, PVC; 3 x 0.25 mm²ConnectionConnector: 1 x M12; coding: ADiagrams and graphs![](https://www.ifm.com/restservices/vn/en/assets/c3VwcGxpZXJzL2lmbS9kb2N1bWVudHMvUElDL1BJQ19UV19TQ0hFTUEuUE5H?v=266)

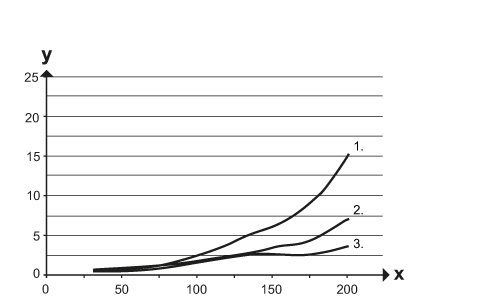

accuracy graph![](https://www.ifm.com/restservices/vn/en/assets/c3VwcGxpZXJzL2lmbS9kb2N1bWVudHMvS1UvS1VfMDEyMC5QTkc=?v=62)
